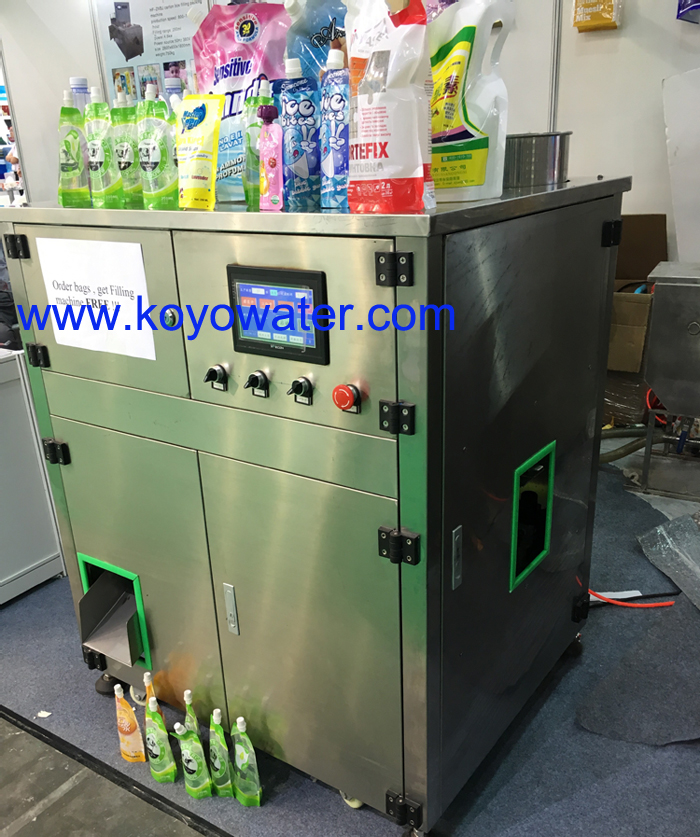

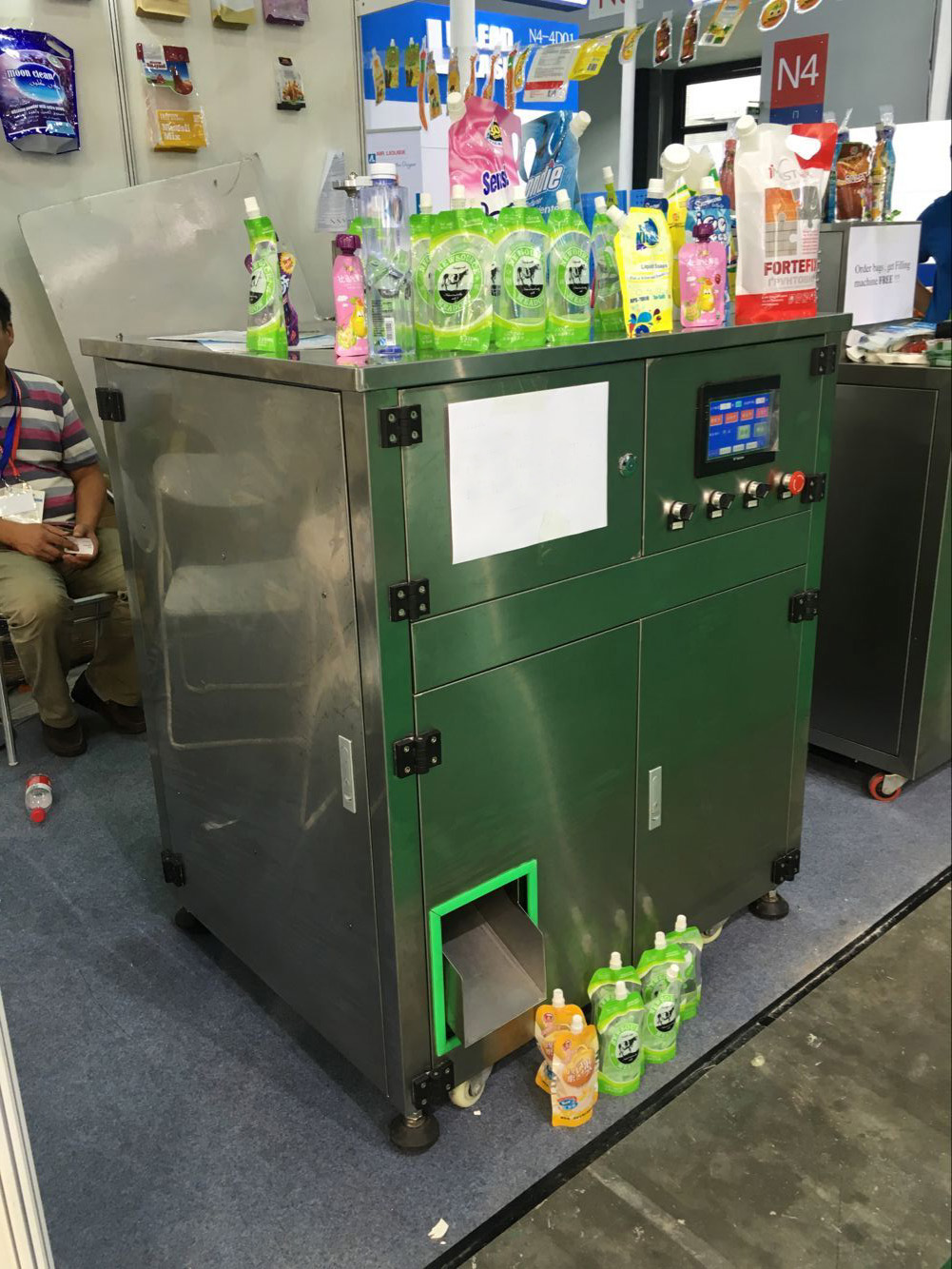

doypack bag with cap/doypack filling machine/standing pouch with
straw/straw bag filling capping machine
Specifications:
fill around 600-1200 packs/ bags/pouches per hour
suitable for small scale package business
PLC control, Touching screen operation
one filling nozzle or one head needle(single head)
Easy operation and maintaince
Fully automatic spout pouch supply, liquid filling, cap supply, cap
arrange and capping.
1. Applications:
The stick pouch is a popular international plastic bag. It is also
called Expansion Bags, inflation bags, bar milk bags, bar yogurt
bags, honey sticks, preformed bags, Plastic Bag, Stand Up
Pouch(without screw cap), Spout Pouch (with screw cap), Pre-Shaped
Bag, Formed Bag, Bottle Shape Pouch, Fruit Shape Pouch, Fruit Shape
Bag, Various Shape bag, Sword Shape Pouch, Ice Lolly Pouch, Sachet,
Doypack, tube package bags, etc.
It is widely used in dairy products and any different fluid
viscosity products and such as drinks, mineral water, pure water,
dairy, milk, yogurt, soy milk, jelly, beverage, lactic acid drinks,
Vegetable Protein Drinks, Natural Fruit Juice, Coconut juice,
pineapple juice, strawberry juice, Fruit Jam, seasoning, Ice Pop,
honey, honey sticks, Tomato Sauce, Salad Dressing, Japanese egg
tofu, soy sauce, cooking oil, coconut oil, cleaning supplies,
alcohol, Viscous liquid, semi-fluid, and liquid chemical, big
viscosity semi-fluid, grainy orange products, shampoo, daily
chemicals, liquid laundry detergent, food industry and chemical
industry, medicine, pesticide and other industries, etc.
2. Features:
This machine fully functional, reasonable structure, convenient
operation, easy maintenance, repair, for cleaning, meet the food
hygiene conditions. This machine is machine, electricity, gas,
electrical and pneumatic components adopt reliable performance of
the domestic brand components, long service life, convenient
maintenance, and equipped with leakage protection, safeguard the
personal safety
3. Functions:
(1) on the touch screen operation
(2) automatic bag
(3) the photoelectric detection tracking
(4) automatic quantitative filling
(5) automatic cover
(6) automatic screw cap
(7) automatic out of the bag
(8) level control for material
(9) stop protection function
Technical data:
Type:KY-1200
Automatic Grade: Automatic
Packing Speed:600-1200bag/hour
capacity:150-1000 ml
Filling nozzles: 1 nozzle or one head needle(single head)
Machine Power:1.1kw
Electrical:220V/50Hz
operation pressure:04Mpa
gas consumption:0.35m3/min
Size:980*760*1200mm
Weight:180kg
